Introduction

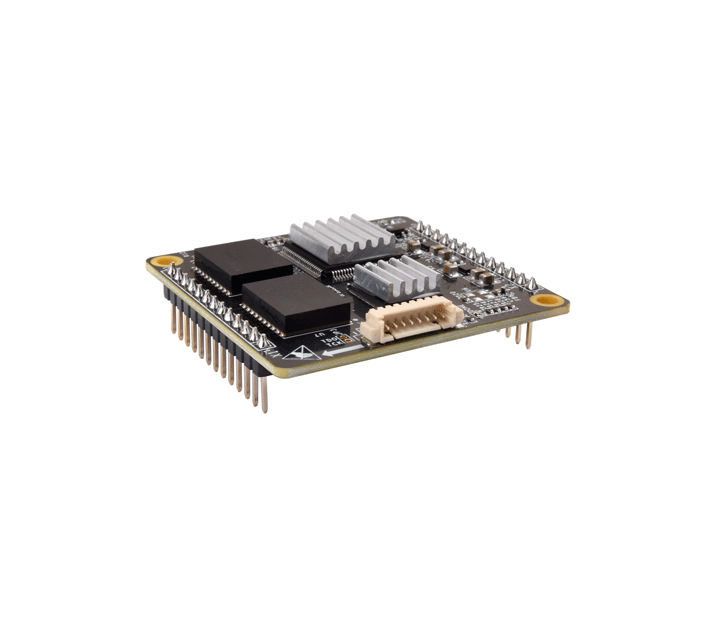

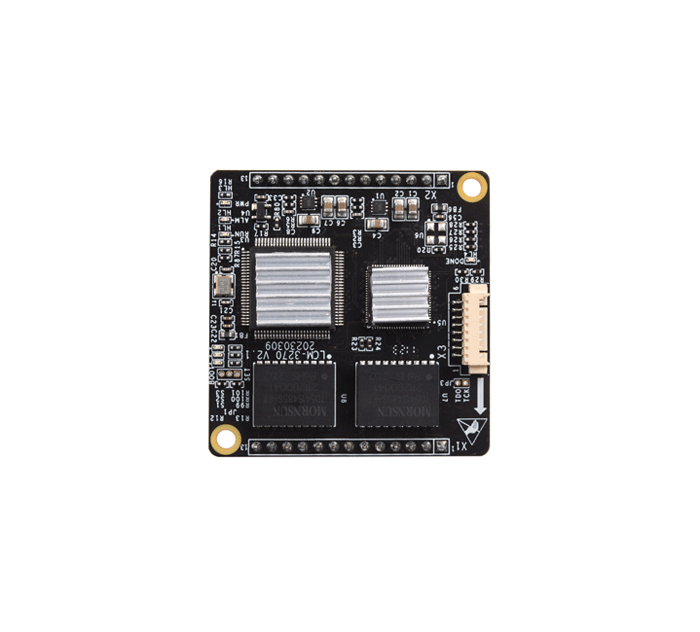

The Yacer MVB-UART isolated embedded slave NIC module, provided full-feature MVB redundant interface and one UART interface, and realized protocol conversion between MVB and serial port.

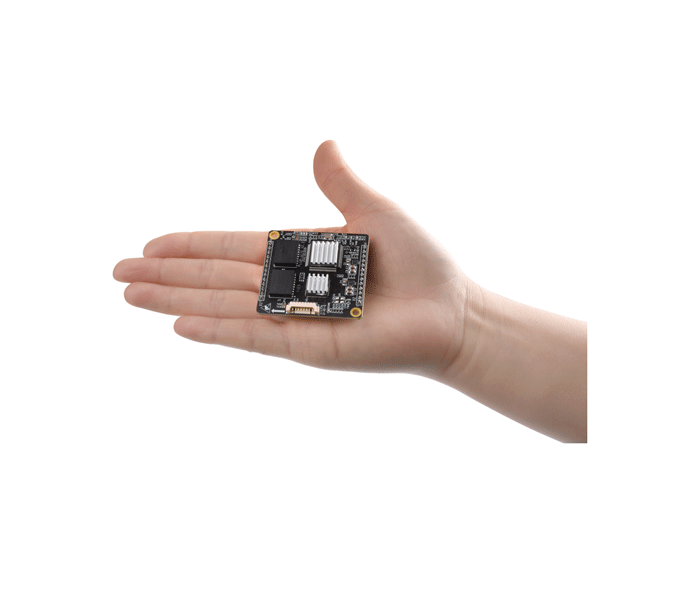

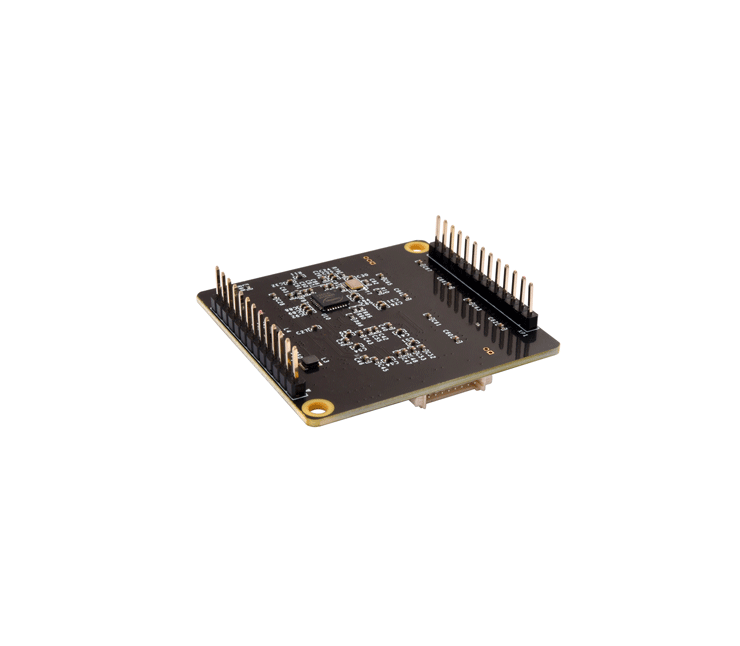

46.5 x 48 mm small size, 2.54 mm pin connector. + 5V power supply, low power consumption. Industrial wide temperature, suitable for embedded applications.

Features

  • Full feature MVB redundant interface, support EMD, ESD+, compliant with IEC61375 standard

  • Support MVB slave protocol and multiple PD source and sink ports

  • Support MVB bus PD data acquisition function

  • One UART extended serial port, realizing bi-directional conversion between MVB and serial port

  • + 5V power supply, Low power consumption

  • Small size, Industrial wide temperature

Applications

  • Protocol conversion between MVB and serial port

  • Train Control and Management System (TCMS)

  • Train Communication Network (TCN)

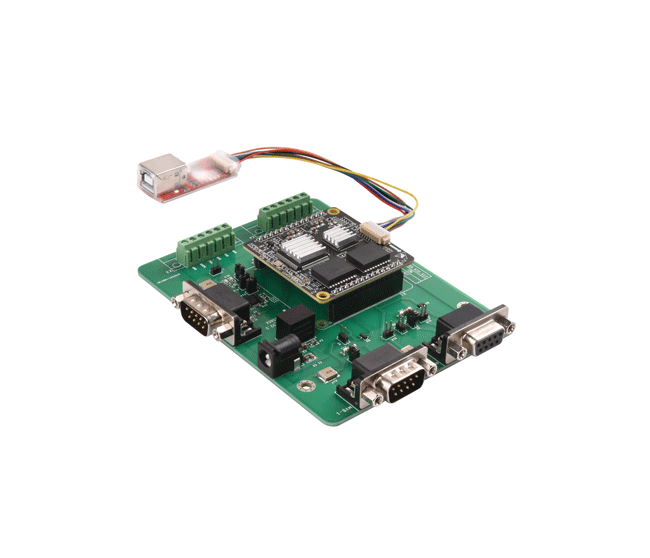

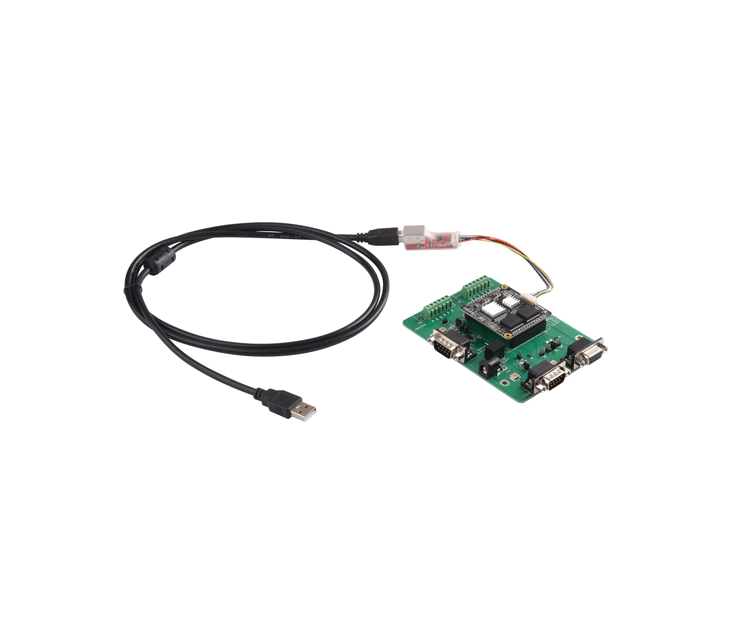

  • Embedded application and development
