Overview

Introduction

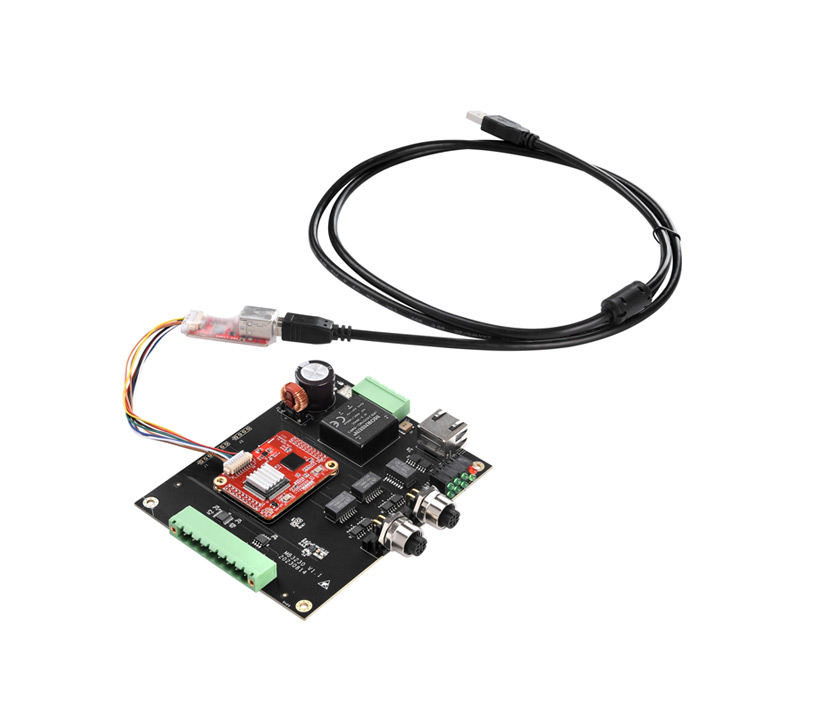

The Yacer TRDP-ETH dual redundant TRDP Ethernet card, provides two TRDP redundant 100M Ethernet interfaces, one TCP/IP Ethernet interface and one serial port to implement protocol conversion between TRDP and UDP or serial port.

Applications

• Protocol conversion between TRDP and UDP

• Protocol conversion between TRDP and serial port

• Train Control and Management System (TCMS)

• Train Communication Network (TCN)

• Embedded development and application

Features

• Two 100M full-duplex Ethernet interfaces, supporting TRDP protocol

• One 100M adaptive Ethernet interface, supporting TCP/IP protocol

• One serial interface, supporting RS-232, RS-422

• Supporting TRDP PD acquisition function

• Perfect isolation protection, Industrial wide temperature

Specifications

Item	Parameters	Details
TRDP Ethernet Interface	Connector	2 x M12 with D-coding
	Rate	100 Mbps Full-duplex
	Network Protocol	TRDP
	Isolation	1.5 kVrms
TCP/IP Ethernet Interface	Connector	1 x RJ45
	Rate	100 Mbps Adaptive
	Network Protocol	TCP/IP
	Isolation	1.5 kVrms
UART Serial Port	Connector	8 pin connector with 5.08mm pitch
	Interface Type	RS-232、RS-422
	Duplex Mode	Full-duplex
	Baud Rate	≤ 1 Mbps
Configuration Management	Configuration tool	yacer-DMS configuration management software
Configuration Management	Console interface	Ethernet Interface Dedicated DMS-UART interface ( with Yacer ' s DMS-UART-8P configuration cable )
Power Requirements	Power Supply	LV: Nominal 24V, tolerance 9 ~ 36VDC MV: Nominal 36V, 48V, tolerance 18 ~ 75VDC HV: Nominal 72V, 96V, 110V, tolerance 40 ~ 160VDC
	Isolation	>1.5 kVrms, Anti-reverse protection
	Power consumption	< 3 W
	Connector	3 pin connector with 5mm pitch
Mechanical Characteristics	Dimensions	120 x 100 mm
Mechanical Characteristics	Weight	< 200g
Operating Environment	Operating temperature	-40 ~ +85℃
	Storage temperature	-40 ~ +85℃
	Operating humidity	5 ~ 95% RH (no condensation)

Order Information

Product Model	Power
TRDP-ETH-300-LV	Nominal 24 V, Range 9 ~ 36VDC
TRDP-ETH-300-MV	Nominal 36V, 48V, Range 18 ~ 75VDC
TRDP-ETH-300-HV	Nominal 72V, 96V, 110V, Range 40 ~ 160VDC
